Certified Mid Link Galvanized Chains

Sizes: 3mm - 13mm

Part Number: CHGV06M - CHGV24M Category: Brand:

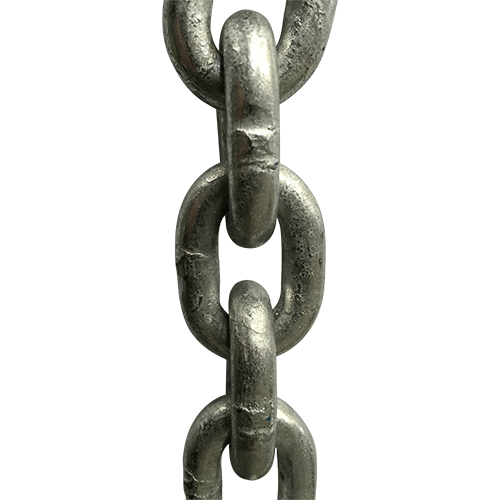

Galvanized Mid Link Mooring Chain

This galvanized mid link chain is proof tested to 2 X SWL. It is not appropriate for lifting. Well suited to marine applications.

Description

Part
Number
Diameter
mm
Inside Length
(Pitch) mm
Inside Width
mm
Outside
Width mm
Outside
Length mm
Safe Working
Load 5:1 ton
Minimum Breaking
Load ton
Weight
kg/m
A B C D E
CHGV06M 6.0 26.1 11.5 23.5 38.1 0.32 1.60 0.83
CHGV08M 8.0 32.2 13.5 29.5 48.2 0.53 2.65 1.35
CHGV10M 10.0 39.1 16.2 36.2 59.1 0.86 4.30 2.12
CHGV13M 13.0 49.1 20.1 46.1 75.1 1.60 8.00 3.61
CHGV16M 16.0 59.6 24.5 56.5 91.6 2.31 11.55 5.49
CHGV20M 20.0 73.3 30.0 70.0 113.3 3.67 18.35 8.62
CHGV24M 24.0 87.0 35.6 83.6 135.0 5.34 26.70 12.44

Chain Black Mid Link Specs
