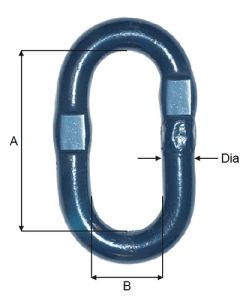

Description
| Part Number |
WLL 5:1 ton |
Dia. mm |
A mm |
B mm |
Recessed Link mm |
Weight kg |
|---|---|---|---|---|---|---|
| RL12B | 1 | 12 | 70 | 30 | 10 | 0.2 |
| RL16B | 1.5 | 16 | 85 | 35 | 12 | 0.4 |
| RL20B | 3.2 | 20 | 110 | 45 | 14 | 0.9 |
| RL25B | 4.4 | 25 | 130 | 50 | 18 | 1.5 |
| RL28B | 5.6 | 28 | 150 | 60 | 21 | 2.1 |
| RL32B | 10 | 32 | 150 | 60 | 23 | 2.8 |
| RL35B | 12.5 | 35 | 160 | 73 | 26 | 3.8 |
