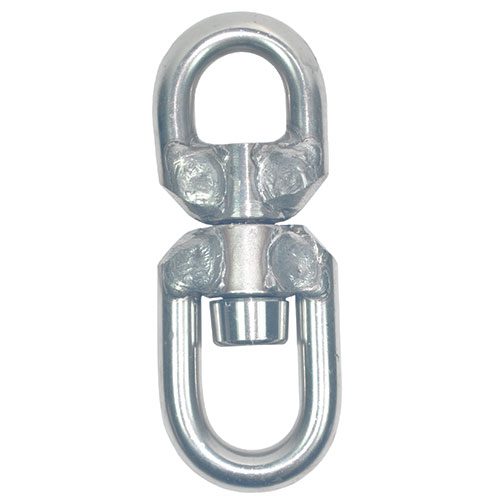

Swivel Dry Stainless Steel Blueline

Sizes: 6mm - 38mm

Part Number: SWDSS06 - SWDSS38 Categories: , Brand:

The stainless steel swivels are rated 5:1 and are usable for commercial fishing, lifting, maritime and offshore.

All the swivels are tested and come with test certificates.

Description

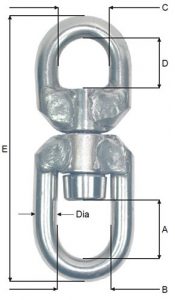

Swivels dry stainless steel - specs

PartNumber Dia
mm
WLL 5:1
ton
A
mm
B
mm
C
mm
D
mm
E
mm
Weight
kg
SWDSS06 6 0.27 14 14 14 14 64 0.05
SWDSS08 8 0.5 19 19 19 19 93 0.14
SWDSS10 10 1.1 30 28 20 20 110 0.23
SWDSS13 13 1.6 29 28 27 30 140 0.36
SWDSS16 16 3.2 43 38 35 47 180 0.89
SWDSS19 19 4.7 45 39 38 40 205 1.8
SWDSS19L 19 4.7 45 39 38 63 230 1.85
SWDSS22 22 6.3 45 40 40 42 222 2.25
SWDSS22L 22 6.3 45 40 40 65 250 2.4
SWDSS25 25 8.3 52 50 42 52 278 4.1
SWDSS25L 25 8.3 52 47 47 84 300 4.3
SWDSS32 32 12 60 50 50 98 350 8.15
SWDSS38 38 18 72 58 58 112 390 13
