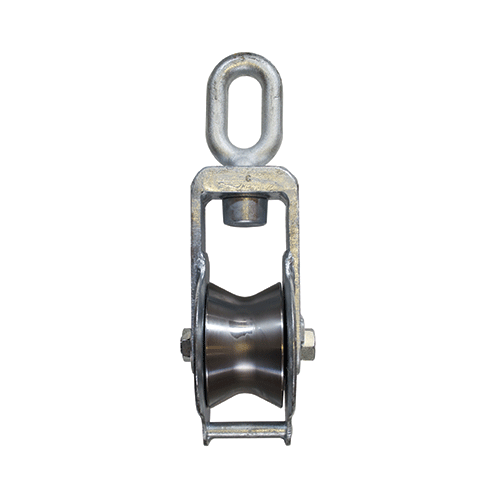

Description

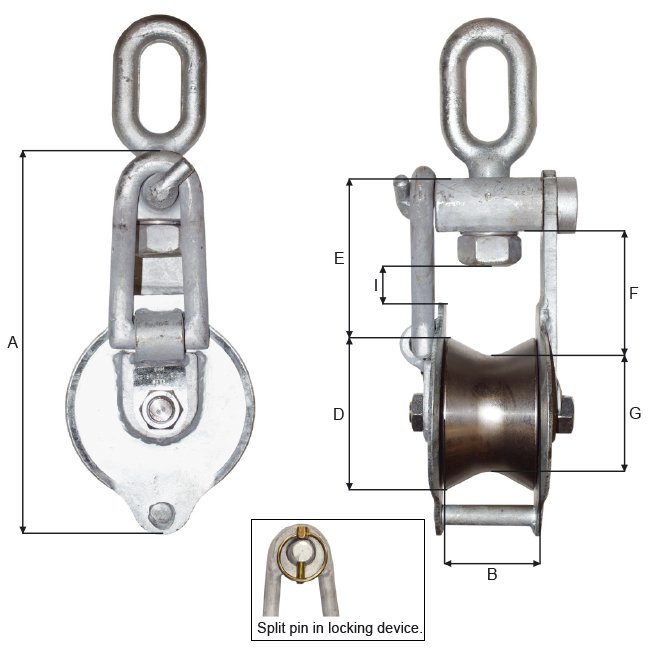

| Part |
5:1 | Max load on headfitting | Test load | A | B | D | E | F | G | I | Weight |
| Number | ton | ton | ton | mm | mm | mm | mm | mm | mm | mm | kg |
| KS110- * E | 3.0 | 6.0 | 12.0 | 255 | 85 | 110 | 68 | 85 | 70 | 45 | 10.0 |
| KS150- * E | 5.0 | 10.0 | 20.0 | 330 | 85 | 150 | 75 | 85 | 110 | 55 | 19.2 |
| KS215- * E | 8.0 | 16.0 | 32.0 | 425 | 100 | 215 | 95 | 100 | 170 | 63 | 39.5 |
All snatch blocks must be closed during operation.
BMM-Blocks must be ordered with one of the following:
1 Ball bearing, greaseable.
0 Bronze bushing, greaseable.
On order replace * with letter, e.g. KS110-1EG
Against extra charge all blocks are available with:
C Tested with certificate.
P Split pin at locking device.
On order add letter, e.g. KS40EGC
Split pin in locking device.
Top fittings
| Part |
M | N | O | P |
| Number | mm | mm | mm | mm |
| KS110 | 33 | 82 | 24 | 134 |
| KS150 | 40 | 95 | 28 | 153 |
| KS215 | 45 | 86 | 32 | 181 |

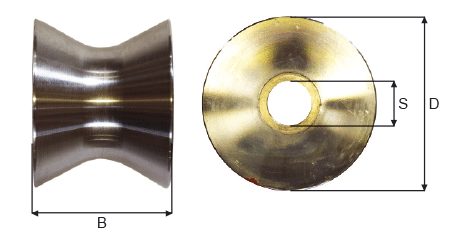

Sheaves
| Part |
B | D | R | S | Weight |
| Number | mm | mm | mm | mm | kg |
| SKS110-1 | 85 | 110 | 62 | 25 | 3.60 |
| SKS150-1 | 85 | 150 | 62 | 25 | 8.10 |
| SKS215-1 | 100 | 215 | 80 | 35 | 18.30 |
| Part |
B | D | S | Weight |
| Number | mm | mm | mm | kg |
| SKS110-0 | 85 | 110 | 25 | 3.80 |
| SKS150-0 | 85 | 150 | 25 | 8.20 |
| SKS215-0 | 100 | 215 | 35 | 18.50 |
Pins
| Part |
X | Y | Z | Weight |
| Number | mm | mm | mm | kg |
| PKS110-1 | 144 | 25 | 115 | 0.60 |
| PKS150-1 | 154 | 25 | 122 | 0.70 |
| PKS215-1 | 158 | 35 | 117 | 1.30 |
| Part |
X | Y | Z | Weight |
| Number | mm | mm | mm | kg |
| PKS110-1 | 144 | 25 | 115 | 0.60 |
| PKS150-1 | 154 | 25 | 122 | 0.70 |
| PKS215-1 | 158 | 35 | 117 | 1.30 |
