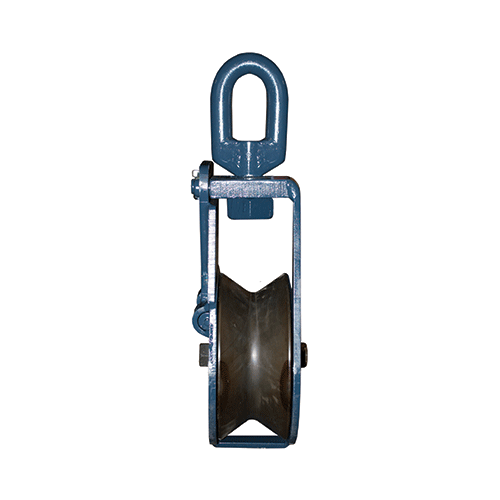

Trawl Blocks Open Blue Painted

Sizes: 11 ton - 20 ton

Part Number: KO300-1 - KO500-2 Category: Blocks Brand: Blueline

Trawl Blocks Open Blue Painted

Description

Description

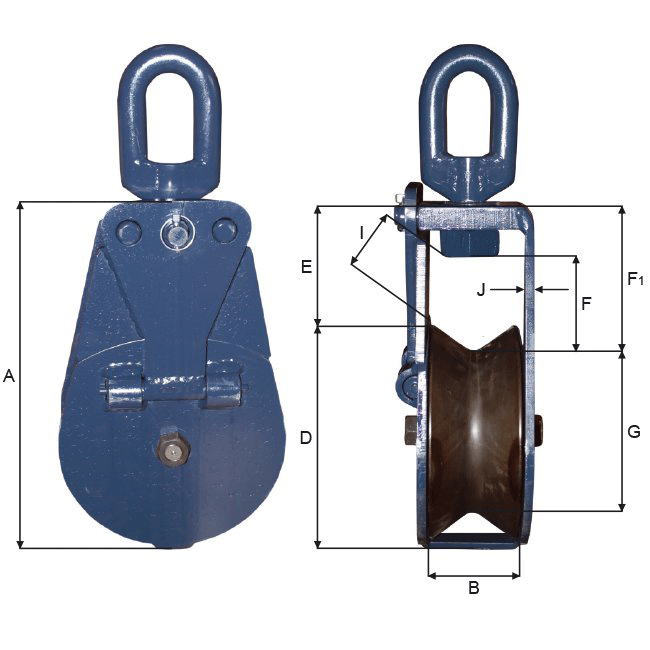

Part	5:1	A	B	D	E	F	F1	G	I	J	Weight
Number	ton	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg
KO300-1	11.0	485	120	300	170	125	205	240	90	12	69.0
* KO370-2	13.0	600	140	380	190	150	235	285	100	12	125.0
* KO400-2	15.0	670	180	400	210	175	270	300	125	15	187.0
* KO500-2	20.0	825	180	500	260	185	310	380	115	20	300.0

Must be closed during operation.

KO300-1 are only available with ball bearing.

* Only available with rollerbearing.

BMM-Blocks must be ordered with one of the following:

E Swivel eye.
S Swivel shackle eye.
F Swivel fork.

On order add letter, e.g. KO300-1E

Against extra charge all blocks are available with:

C Tested with certifcate.
H Flame hardened sheave.

On order add letter, e.g. KO300-1EC

Top Fittings

Part	M	N	O	P	K	L	M	N	R	P	L	M	R	P
Number	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
KO300-1	48	105	38	203	140	29	52	84	35	175	43	58	50	125
KO400-2	58	110	50	225	195	51	85	115	65	260	51	72	60	145
KO500-2	75	140	50	280	195	51	85	115	65	260	58	80	70	160

Sheaves

Part	B	D	R	S	Weight
Number	mm	mm	mm	mm	kg
SK300-1	120	300	80	35	29.80
SK370-2	140	370	100	45	50.50
SK400-2	180	400	140	60	90.00
SK500-2	180	500	170	70	130.0

Pins

Part	X	Y	Z	Weight
Number	mm	mm	mm	kg
PK300-1	190	35	133	1.50
PK370-2	234	45	152	3.20

Part	X	Y	Z	Weight
Number	mm	mm	mm	kg
PK400-2	330	60	212	10.90
PK500-2	340	70	225	12.90
