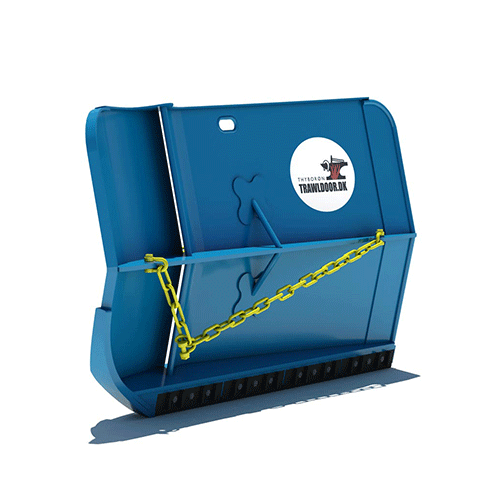

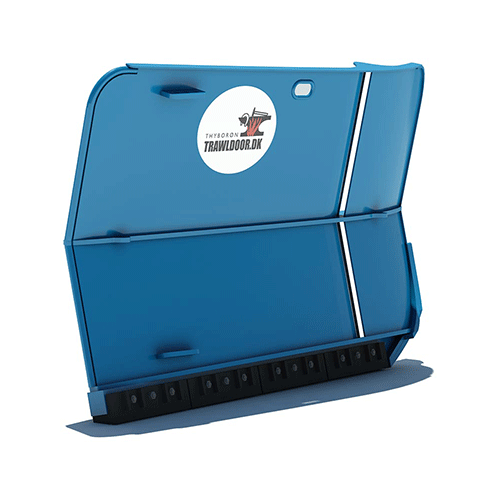

Type 02 Standard / Light

Sizes: 40" - 150"

Category: Brand:

Our type 2 bottom trawl doors were the worlds very first cambered V-bottom doors with one foil.

They are built in all sizes and weights.

Description

The perfect trawldoors for all bottom fishing setups. This was the worlds very first cambered V-bottom door with one foil on the market.

Since the introduction of the Type 2 trawldoors back in 1980 Thyboron Trawldoors has sold thousands of sets of this trawl door model. Even though it is an old model it is still very popular worldwide, being used for all kinds of bottom fishing.

When twin rigging in shallow waters the type 2 is steady as a rock, due to the injector system and weight balance. Where many other door brands give up on spreading the gear, the type 2 has shown excellent performance, especially for shrimp fishing with very slow towing speed down to approximately 1 knot.

The type 2 has proven itself in many special fishing setups, as single rig, twin rig, triple and quad rig, with its wide range of adjustment possibilities. The type 2 is used on vessels using up to 12 trawls with 3 sets of Trawl doors.

The type 2 heavy duty trawldoors are made in all sizes and weights. It is often built according to special customer requests in a light and heavy duty version.

Alle type 2 doors are fitted with either bolted on wearknives and / or flat wide mudkeel.



Technical Specifications
Size area/m2 thickness plate/mm NORMAL weight/kg NORMAL weight/kg HEAVY
40″ 0.82 3 79 100
47″ 0.93 4 100 125
50″ 1.13 4 104 130
55″ 1.35 4 120 150
60″ 1.62 4 135 169
63″ 1.78 4 197 246
66″ 1.94 4 223 278
72″ 2.24 6 259 324
76″ 2.44 6 310 388
80″ 2.62 6 344 430
84″ 2.82 6 355 444
88″ 3.13 6 439 549
92″ 3.73 6 490 613
96″ 4.11 6 515 644
100″ 4.36 6 590 738
104″ 4.86 6 640 800
107″ 5.12 6 770 963
110″ 5.64 8 960 1200
115″ 6.19 8 1040 1300
120″ 6.75 8 1210 1510
125″ 7.41 8 1360 1700
130″ 7.91 8 1440 1800
135″ 8.63 8 1530 1910
140″ 9.38 8 1620 2025
145″ 10.10 8 1730 2160
150″ 10.90 8 1840 2300

Special weights on request.
